Setting Up SonarQube in Azure with Azure AD Integration

Installing SonarQube

Go to the marketplace and install SonarQube from Bitnami – https://bitnami.com/stack/sonarqube/cloud/azure with the following:

  • resize to D1_v2
  • if desired, configure any NSG restrictions

After creation, set a DNS name label for the IP address.

Access using the domain name, and follow the directions in the link above to log in.

Setting up Azure AD Integration

Setting up HTTPS

To be able to use Azure AD, you have to use HTTPS.

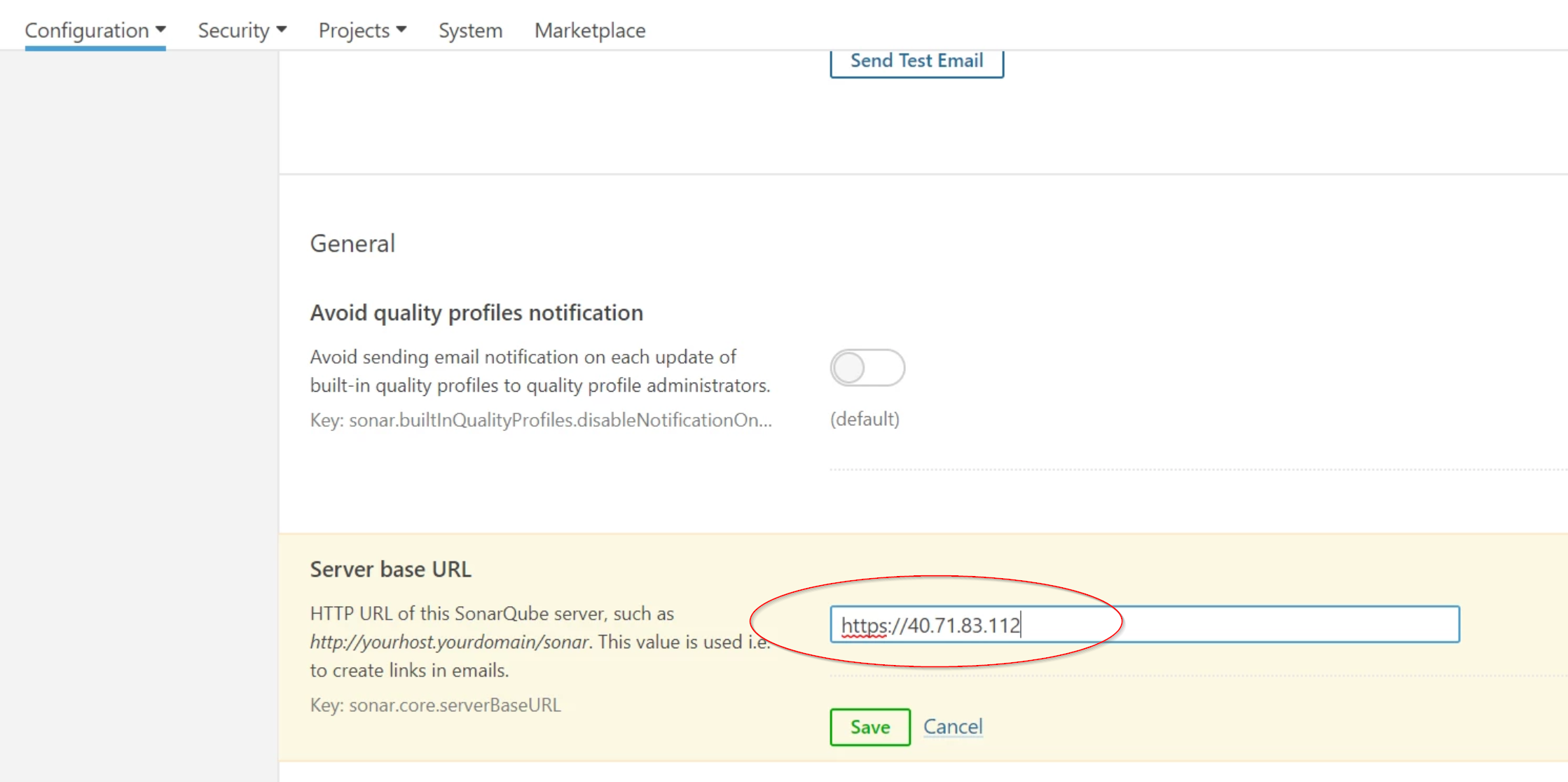

Set up the Server base URL to be the configured HTTPS address in Administration → Configuration → General → Server base URL:

SSH into the server and set up a Let’s Encrypt script and enforce redirection to HTTPS here (make sure you aren’t behind a firewall to allow for Let’s Encrypt).

Restart Apache:

sudo /opt/bitnami/ctlscript.sh restart apache

Verify that trying to access the HTTP version of SonarQube automatically redirects you to the HTTPS version.

Creating App Registration in Azure

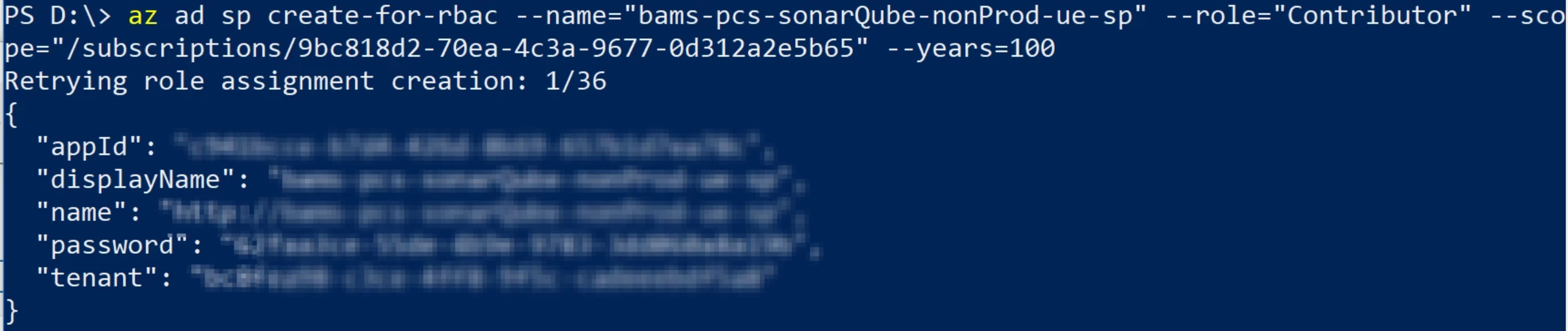

Run the following command in CLI to generate a service principal:

az ad sp create-for-rbac --name="{NAME}" --role="Contributor" --scope="/subscriptions/{SUBSCRIPTION_ID}" --years=100

You should receive some output data, which you will use when filling out info in SonarQube:

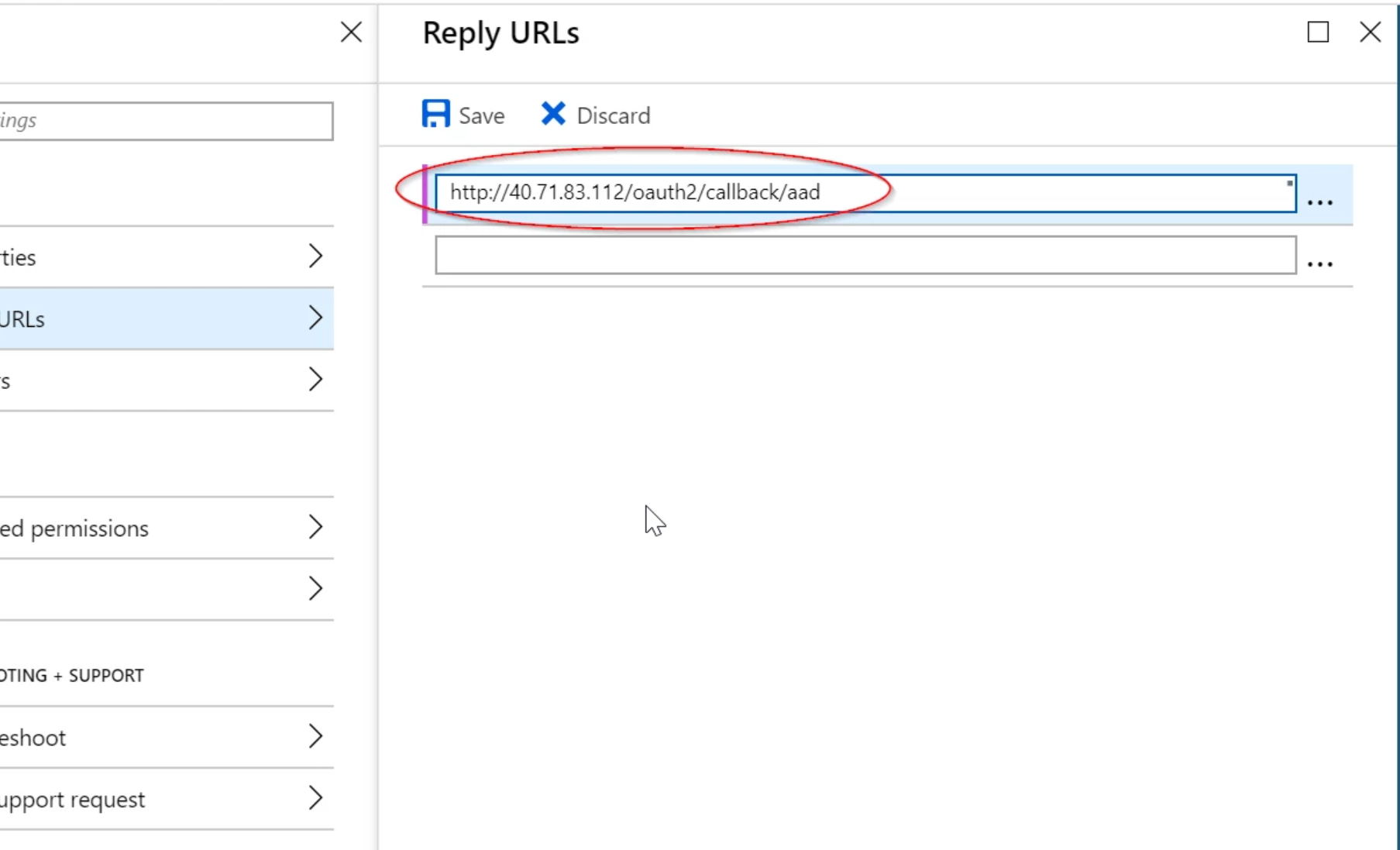

Set the Reply URL of the application to https://<URL>/oauth2/callback/aad:

Set the required permissions:

  • Sign in and read user profile
  • Read all users’ basic profiles

Installing Plug-in

Install the Azure Active Directory (AAD) Authentication Plug-in for SonarQube (restarting when requested):

Configure in Administration → General Settings → Azure Active Directory:

  1. Activate Azure AD
  2. Use the value in “appId”
  3. Use the value in “password”
  4. Use the value in “tenant”
  5. Allow users to sign-up.

Log out as admin, and verify the ability to log in as an Azure AD user.
